Display components such as timing controllers (TCONs) play a critical role in driving today’s high-resolution displays. Analogix TCONs allow device manufacturers to build lower-power, higher-resolution displays that provide a more immersive entertainment experience.

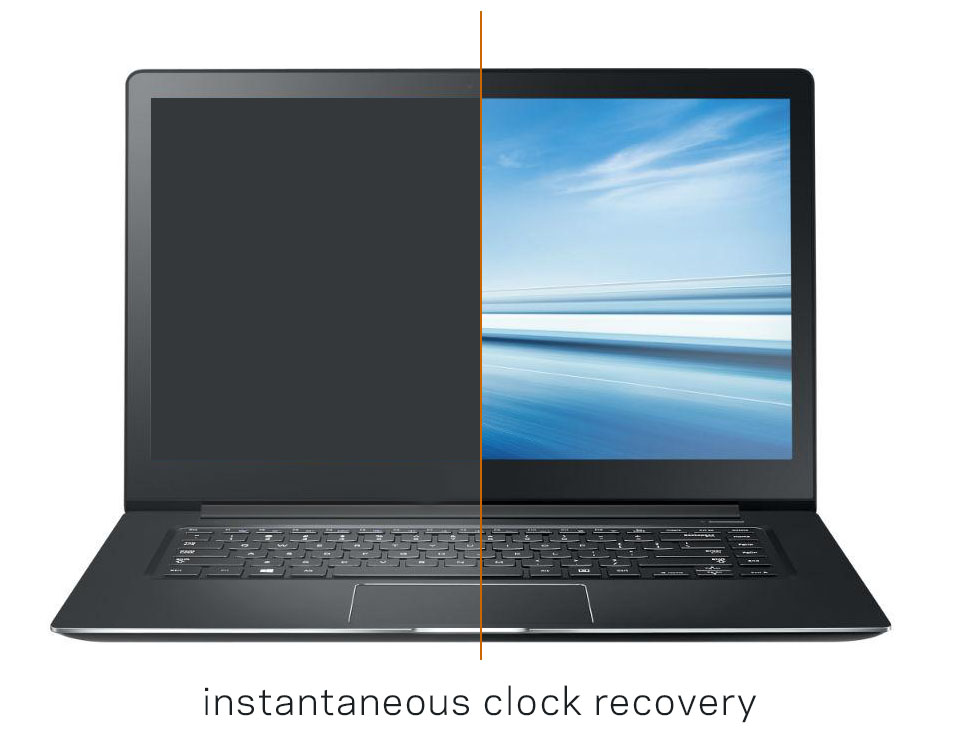

RapidLink delivers instantaneous clock recovery. It allows instant wake-up of the mobile device screen by eliminating the needs for link training.
QuietLink reduces DisplayPort voltage swing. This minimizes power consumption and reduces Electro-Magnetic Interference (EMI).
Provides improved DisplayPort signal recovery. This ensures that the panel can work with the full range of DisplayPort sources in the market.
Analogix’s architecture minimizes the power consumption of high-resolution mobile displays, while providing continuous flow of video to the display, regardless of the state of the CPU, GPU, battery or other components in the system.

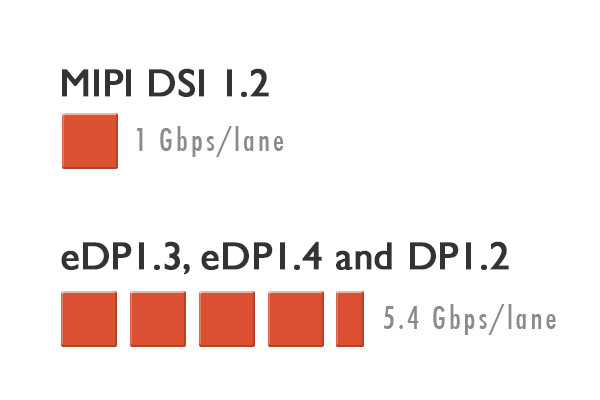

Analogix TCON products are eDP 1.4/DisplayPort 1.2-compliant and with proven HBR2 capabilities.
High Bit Rate 2 (HBR2) DisplayPort for low-power, high-performance, and superior compatibility, with data rates up to 6.75Gbps.
With PSR enabled, the GPU will stay idle when static images are displayed. The panel refreshes the images from a buffer in the TCON.
PSR2, a superset of PSR, allows selective updates of one or more regions, instead of the entire frame.
Analogix TCONs have been adopted by the first Ultra HD 5K monitor in the world.
5Kx3K resolution can be achieved with two Analogix TCON chips synchronized together.
5K monitors are critical for editing 4K images and videos.
MBO saves power by reducing GPU encoding and buffering.
Normally, media are played at 24-30fps and displays typically are refreshed at 60fps.
MBO allows GPUs to stop sending unnecessary frames to the display.
Normally, displays are refreshed at a frequency of 60Hz. However, GPUs refresh displays whenever they are ready.
This technology synchronizes GPU output with display refresh by dynamically changing the refresh rate.
This reduces image tearing and stuttering.
Analogix's LCD overdrive technology compensates for the response time of the LCD panel itself, which sharpens moving images.
This enhances the experience of all kinds of applications including gaming and video editing.
Assertive Display* adapts each pixel based on the content being displayed and the ambient lighting conditions to deliver two major benefits:
Analogix TCONs with Assertive Display are shipping with notebooks today.
*Assertive Display is a trademark of Apical.
